Feed Products & Bulk Feed Storage
The Rundown

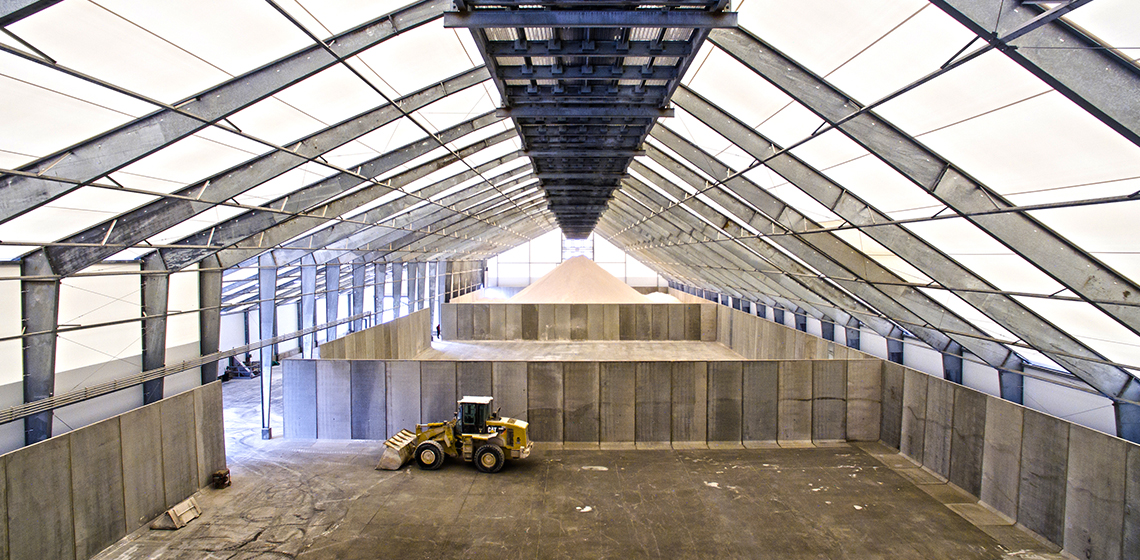

When business growth meant a need for additional space at their Madison, Illinois, location, Feed Products & Service Company added a fabric building with precast concrete bins for storage and transloading of bulk feed products.
Feature Details
- 120 ft x 460 ft with 40 ft x 190 ft lean-to (62,800 sq ft)
- White and gray PVC fabric cladding
- Hot dip galvanized steel frame
- Conveyor load of 750 lbs per running foot
- 18-in overhangs with mesh soffit for ventilation
- Precast concrete storage bins with sliding steel bin gates and panels
- 40,000-ton capacity
- 90 mph wind, wind exposure C, 20# snow, enclosed, full exposure, low occupancy
- Building use: Bulk feed distribution
Industry
Bulk Commodity
Size
62,800 sq ft
Location
Madison, IL
Year
2018
Testimonials
The Legacy construction crew was very professional and courteous.
Because of our soil issues, we simply couldn't afford to construct a more traditional building. The concrete costs made a more traditional building cost prohibitive. The lightweight design of our Legacy building allowed us to reach a compromise between soil conditions and cost. Regarding the design and construction phases of the building, I can say that the process went exceptionally well. When I made eleventh-hour changes to the job, Legacy handled them with ease. They finished the job well ahead of schedule, worked safely, and followed our stringent safety requirements to the letter.
Legacy was very easy to work with.
The old buildings used tubular steel, and no matter what you do, the salt gets inside the tubes and corrodes them. They came out here with their crew, rented all their equipment, and erected the buildings in three weeks flat – a week ahead of schedule. It's a stand-up company.
The new building will protect the salt supply.
It will be protected from being compromised by wind and precipitation. Once the general contractor completed the footings and floors, Legacy installed the fabric building very quickly, in about two weeks. It was a very positive process with professional communication between Legacy and Dewberry throughout the project.
